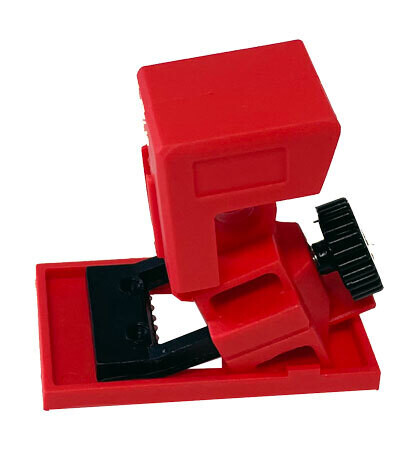

UCL-13 Clamp on MCCB lockout - Small
Product Details
| Part No: | UCL-13 |
| What is it: | Universal Lockout Device can help prevent unintended energisation of energy source. |
| Application: | Clamp UCL-13 onto the Circuit Breaker toggle in the OFF position, tighten the screw using the thumb toggle in the device. Close cover and place a padlock through the hole to prevent access to the screw. |
| Use For: | Small Moulded Case Circuit Breakers (suitable for Terasaki Tembreak S160NJ and similar breakers) |
| Material: | Polypropylene and impact modified nylon. Steel screw. |
| Dimensions: | UCL-13 suitable for toggles up to 14mm wide and 12mm thick |
| Padlock Holes: | 1 x 7.5mm |
| Colour: | Red |
| Pack Sizes: | Pack of 1 Bulk packs of 100 available on request |
| Stock: | Yes - Buderim Queensland |
| Other: | Maximum toggle size it can clamp is 12mm thick Must be used with suppled attached cleat. |
| Data Sheet: | UCL-13 Data Sheet |
Suitable for a maximum toggle width 14mm
