Circuit Breaker and other 18 x 45mm Module Covers

CBC

Circuit Breaker and other 18 x 45mm Module Covers CBC
Price : 25.47 AUDIn stock

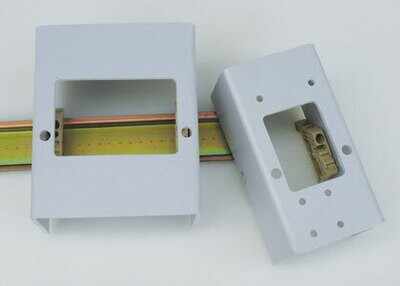

Our CBC Covers are made to cover 2, 3 & 4 pole Miniature circuit breakers and other modules that are 18 x 45mm. They allow the mounting of our Cirlock System lockout devices in places where there is no escutcheon.
Grey PVC Plastic Cover
Clamps onto Din Rail
Cut-outs suit standard DIN Rail modules: 18 x 45mm
Height from DIN Rail to underside Cover: 52mm
Available in 2, 3 and 4 Pole
Open at top and bottom
Factory fitting of Cirlock System lockouts is available - please click here to enquire.
MEASUREMENTS

CBC-2 - 120mm H x 62mm W
CBC-3 - 120mm H x 80mm W
CBC-4 - 120mm H x 98mm W

Brand:Cirlock Pty Ltd
Number of poles to cover
CBC-2 - Cover for 2 Pole or 2 x 1 Pole CB's (0)
CBC-3 - Cover for 3 Pole or 3 x 1 Pole CB's (0)
CBC-4 - Cover for 4 Pole or 4 x 1 Pole CB's (0)
