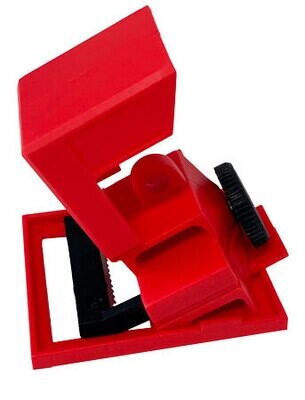

UCL-14 Clamp on MCCB lockout - Large
UCL-14
Price : 21.05 AUDIn stock
| Part No: | UCL-14 |
| What is it: | Universal Lockout Device can help prevent unintended energisation of energy source. |

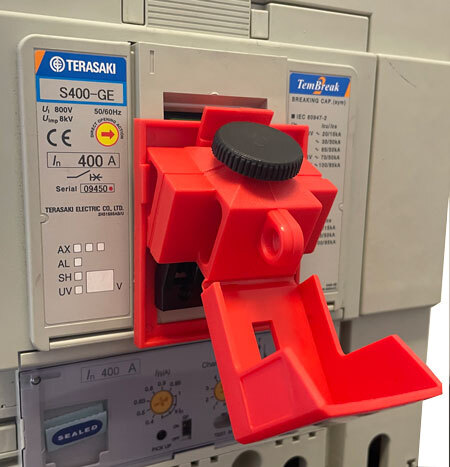

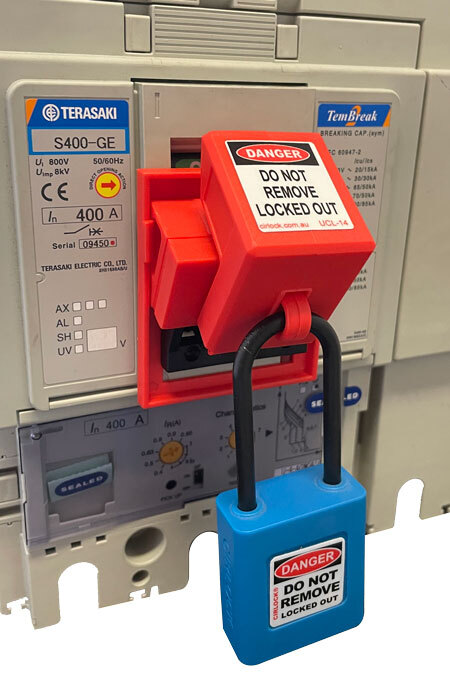

| Application: | Clamp UCL-14 onto the Circuit Breaker toggle in the OFF position, tighten the screw using the thumb toggle in the device. Close cover and place a padlock through the hole to prevent access to the screw. |
| Use For: | Large Moulded Case Circuit Breakers (suitable for Terasaki Tembreak S400GE and similar breakers) |
| Material: | Polypropylene and impact modified nylon. Steel screw. |
| Dimensions: | UCL-14 suitable for toggles up to 37mm wide and 12mm thick |
| Padlock Holes: | 1 x 7.5mm |
| Colour: | Red |
| Pack Sizes: | Pack of 1 Bulk packs of 100 available on request |
| Stock: | Yes - Buderim Queensland |
| Other: | Maximum toggle size it can clamp is 12mm thick Must be used with suppled attached cleat. * Please note if a toggle extension piece is used it may need to be removed for the device to fit over the toggle * |
| Data Sheet: | UCL-14 Data Sheet |
Suitable for a maximum toggle width 37mm (as indicated by yellow arrows)
** CIRUCL, CIRUCL14
