UCL-2-EL Lockout for RCD/CB with short toggle

UCL-2-EL

UCL-2-EL Lockout for RCD/CB with short toggle UCL-2-EL
Price : 13.95 AUDIn stock
PART NO:
UCL-2-EL
WHAT IS IT:Universal Lockout Device can help prevent unintended energisation of energy source.
APPLICATION:Clamp UCL-2-EL onto the Circuit Breaker toggle in the OFF position, using a small screwdriver tighten the set screw in the device. Place a padlock through the hole to prevent access to the screw. Verify the breaker CANNOT be turned in the ON position.

** NOT SUITABLE FOR ALL MCCB'S ** Breakers with larger toggles use UCL-13
USE FOR:Certain Types of Moulded Case Circuit Breakers.
MATERIAL:Nylon Plastic with ZP Metal set screw.
DIMENSIONS:51mm x 25mm x 23mm wide
PADLOCK HOLES:1 x 8mm
COLOUR:Yellow
PACK SIZES:Pack of 1
Pack of 25 Hang Packs
Box of 100 Hang Packs
Box of 100 Bulk Packed
STOCK:Yes - Buderim Queensland Australia
OTHER:Max toggle size it can clamp: 8mm. CANNOT be used on earlier type SAFE-T DRCB E/L CB with longer toggle.

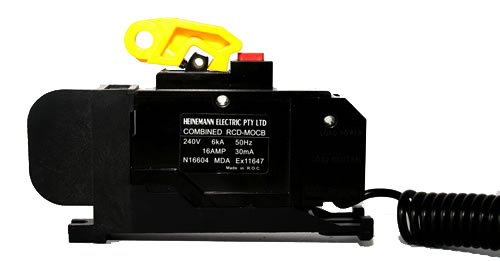

Not suitable for all NHP Safe-T N15251. Check toggle shape if using on NHP breaker. Toggle needs to be rounded in shape - like image below.

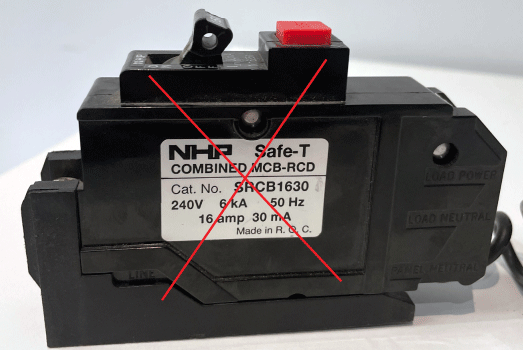

DO NOT USE ON TOGGLES shaped like this (Use UCL-13):

** CIRUCL, CIRUCL2EL
